Drawing & Data Coming 2027

DXFTrace

Turn a drawing into numbers: open a DXF, pick the layers, set 0,0 on any snap point and export the geometry as a coordinate table. The file never leaves your machine.

DXFCSV / Excel / JSON

Notify me at launch All tools

In development. Free to use from launch until the end of 2027.

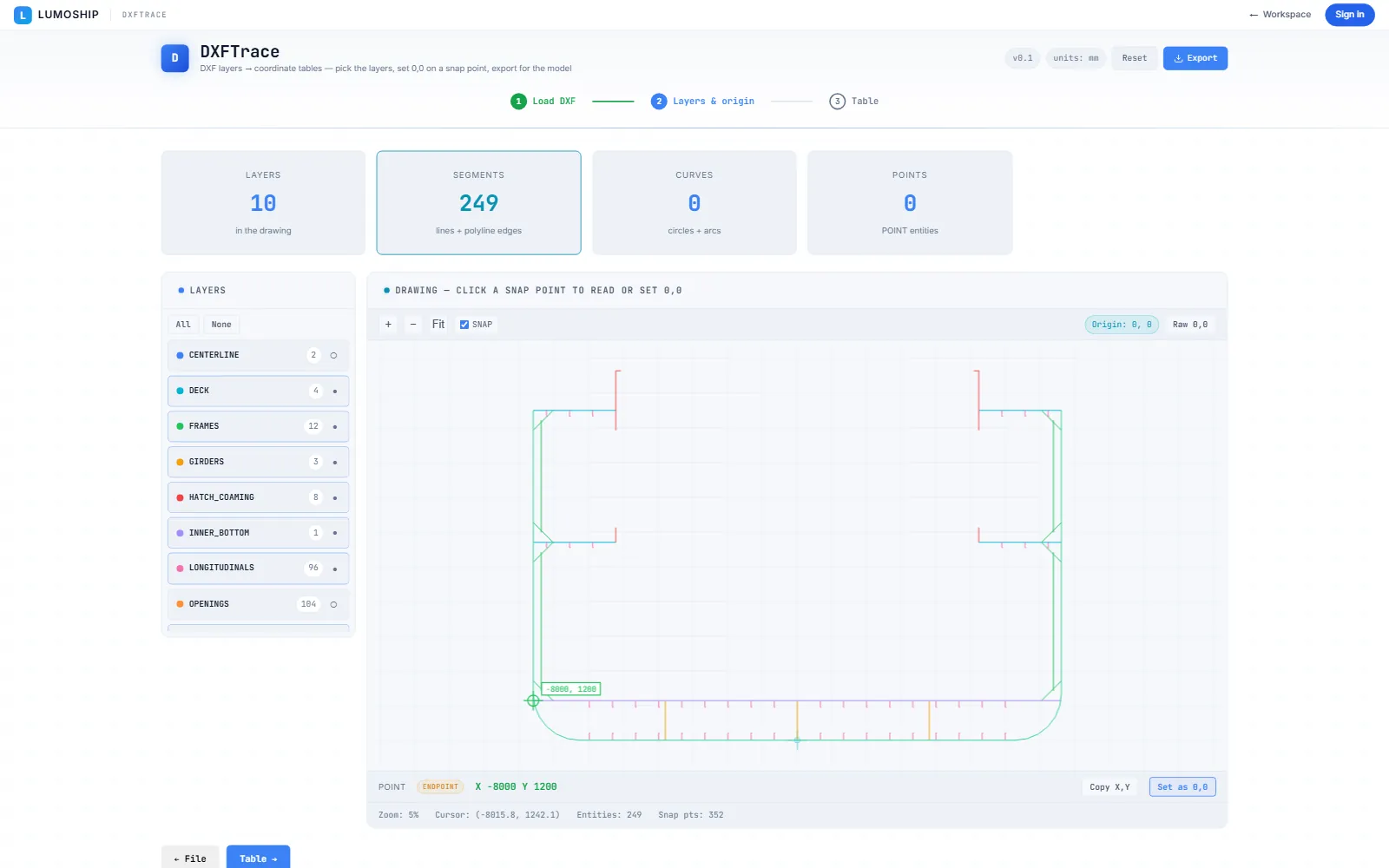

The drawing read by layer; click a snap point to read its coordinates or set it as 0,0.

What it does

The feature set being built and verified for the first release.

Reads a DXF drawing in the browser
Pick which layers to take
Set the origin on any snap point

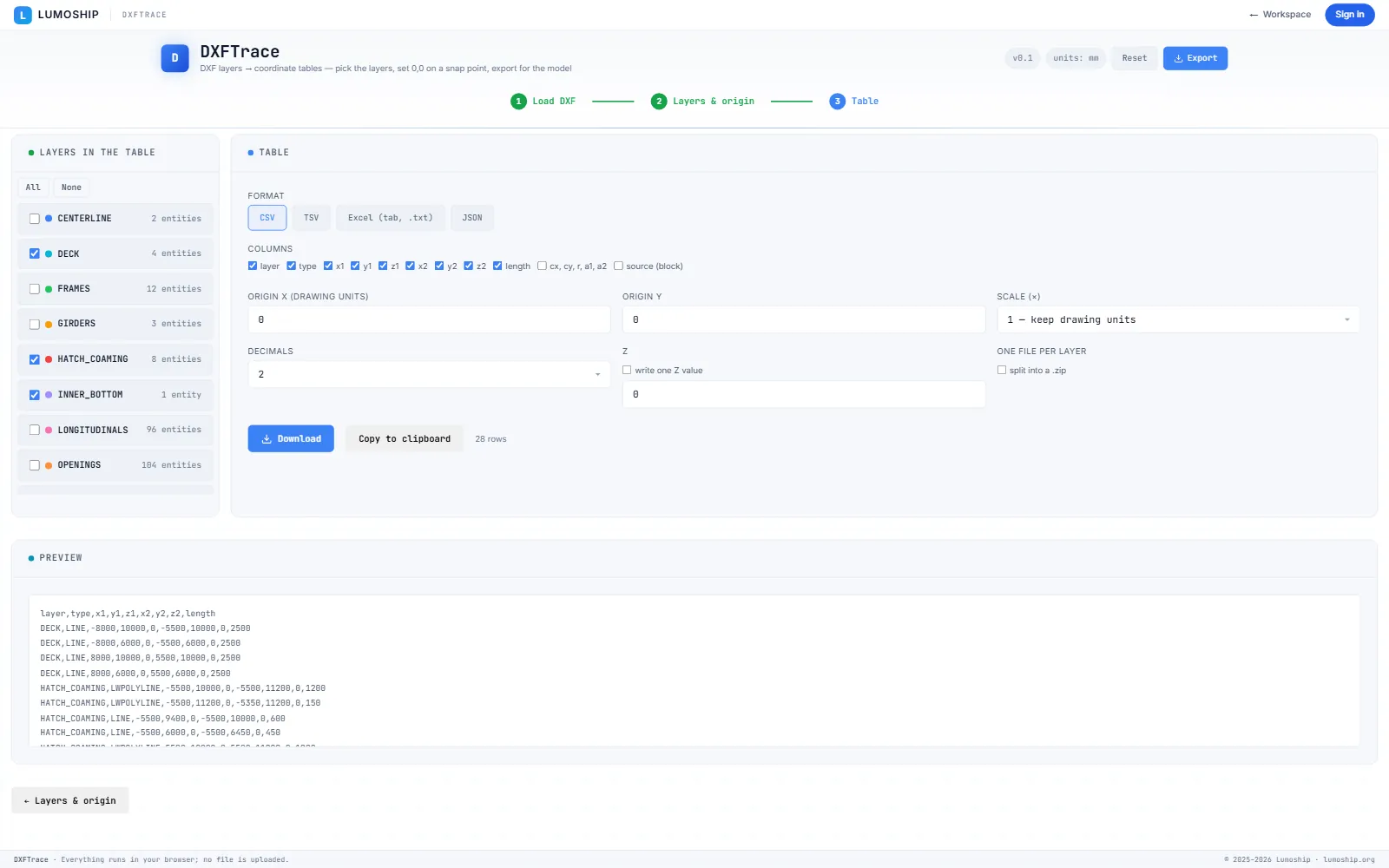

Export as CSV, TSV, Excel (tab separated) or JSON
Nothing is uploaded; the file stays on your machine

Release and pricing

The same for every Lumeship tool.

Now

In development. Each check is compared with the rule text and with reference software before release.

2027

The tools open one by one in the browser — no install, no licence server.

Until end of 2027

Free to use. Paid plans start in January 2028; see pricing.
