Structural Analysis Coming 2027
SectionPro

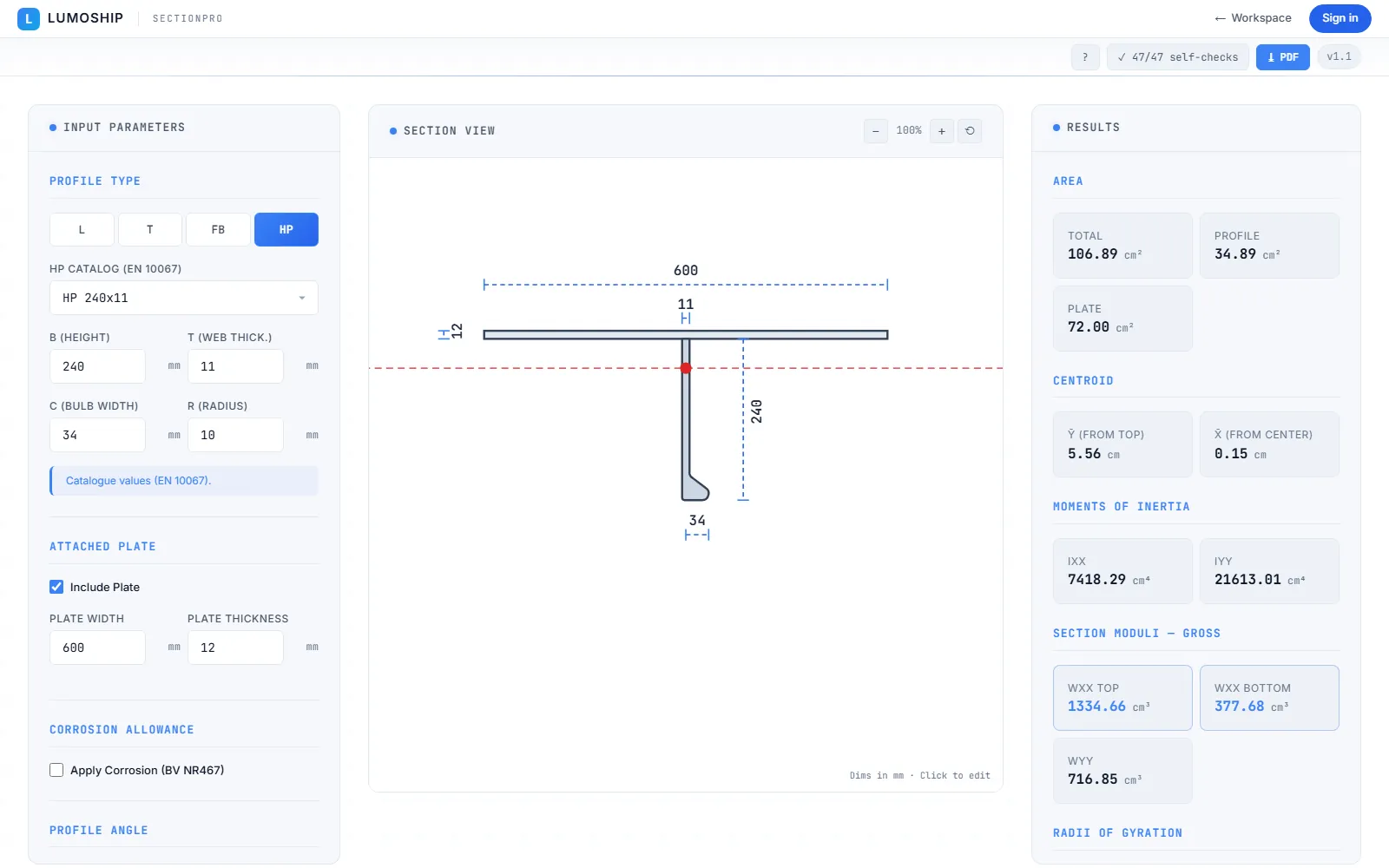

Section properties of ship profiles, gross and net: area, inertia, section moduli and neutral axis for bulb flats, L, T and flat bar with attached plating, inclined profiles and BV NR467 corrosion additions. The same profile catalogue feeds every Lumeship tool.
EN 10067BV NR467 corrosion
In development. Free to use from launch until the end of 2027.
What it does
The feature set being built and verified for the first release.

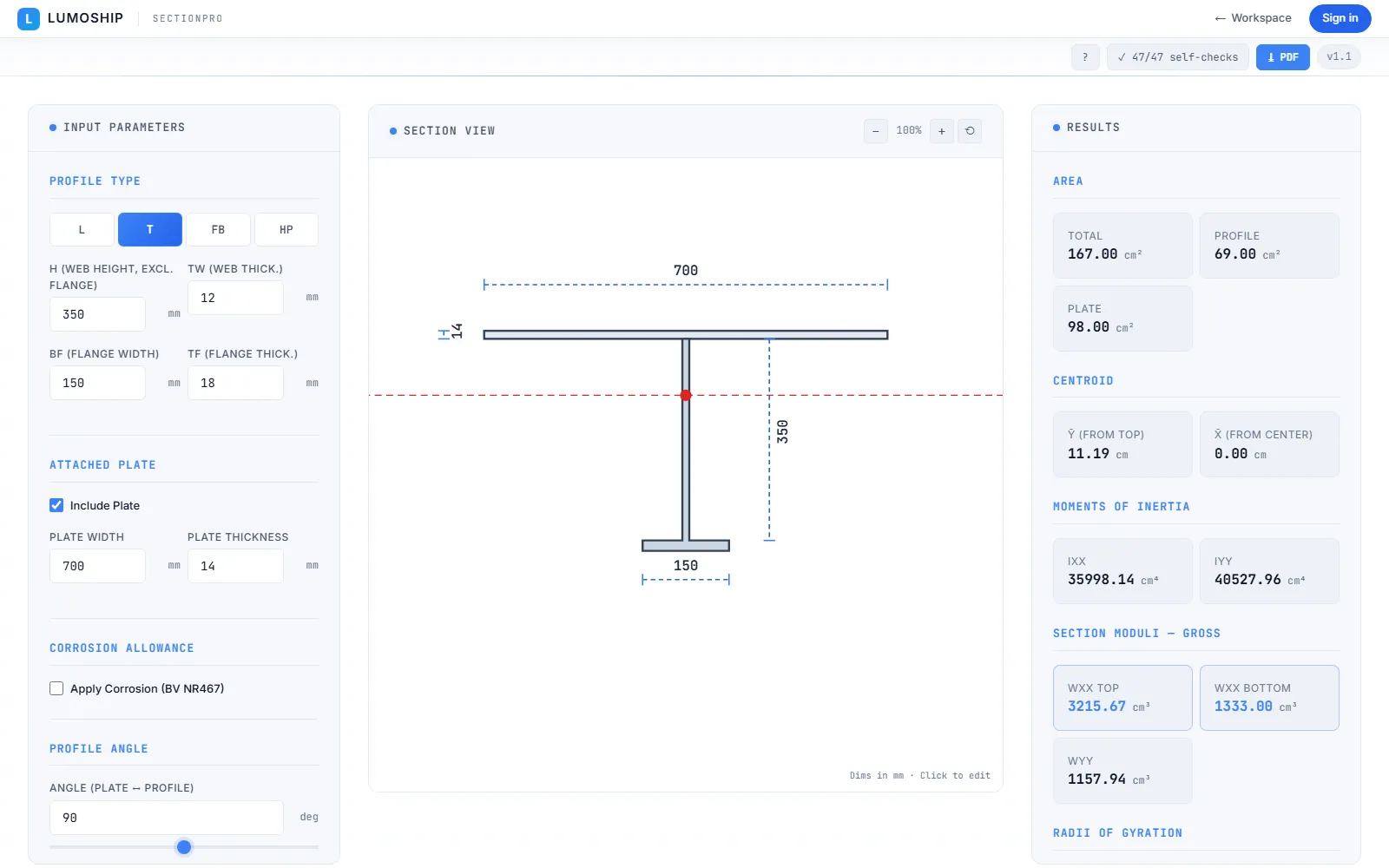

- L, T, flat bar and EN 10067 bulb flat profiles
- Area, Ixx, Iyy, section moduli, radii of gyration, neutral axis
- Attached plating combined with the profile
- Off-catalogue bulb flats by interpolation or the BV NR467 equivalent section

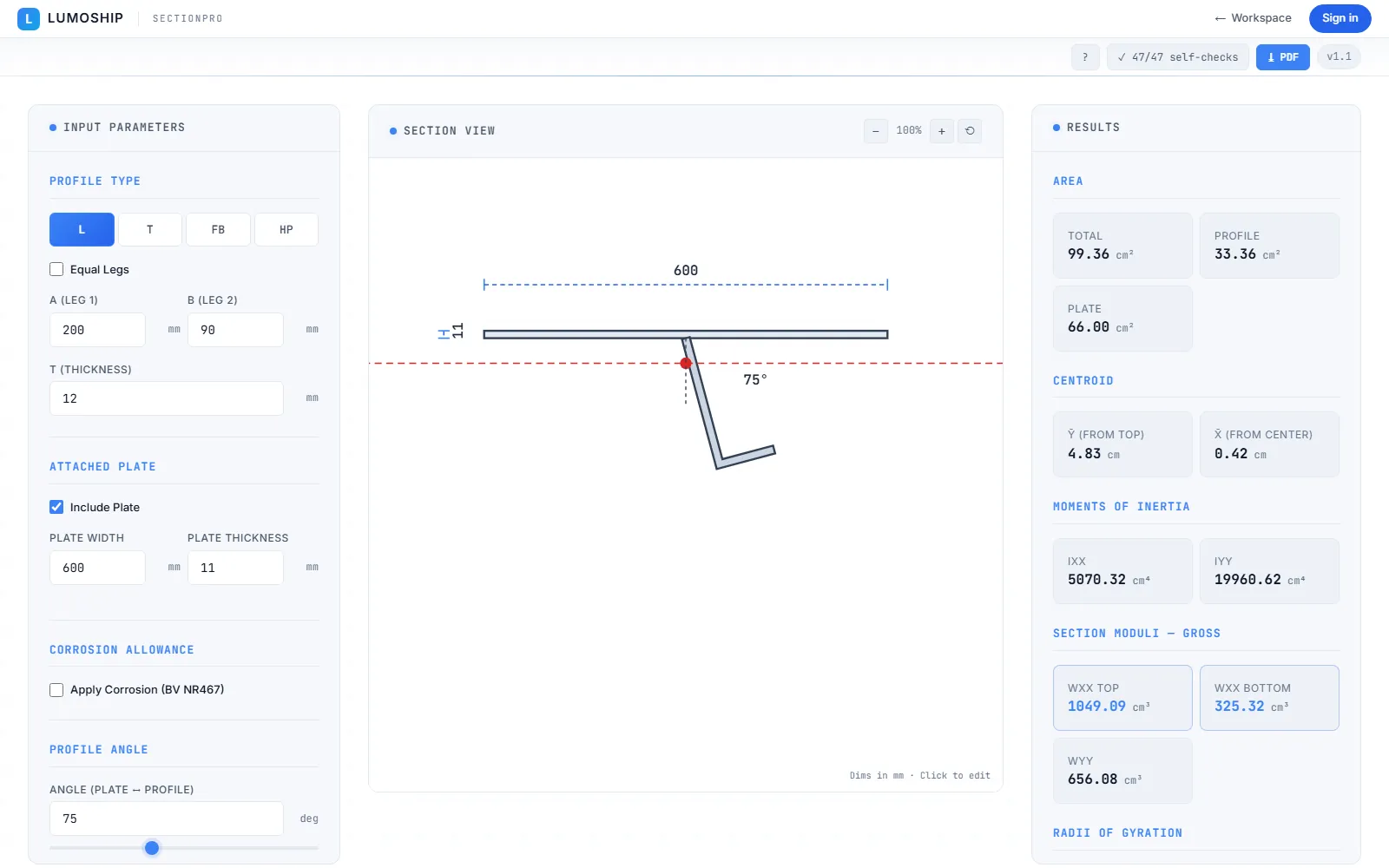

- Inclined profiles by Mohr transformation with the product of inertia
- BV NR467 Pt B Ch 4 Sec 3 corrosion additions, gross and net side by side
- 47 built-in self-checks that run against the live code
- PDF calculation sheet
Release and pricing
The same for every Lumeship tool.
Now
In development. Each check is compared with the rule text and with reference software before release.
2027
The tools open one by one in the browser — no install, no licence server.
Until end of 2027
Free to use. Paid plans start in January 2028; see pricing.
