Drawing & Data Coming 2027
LumoCAD

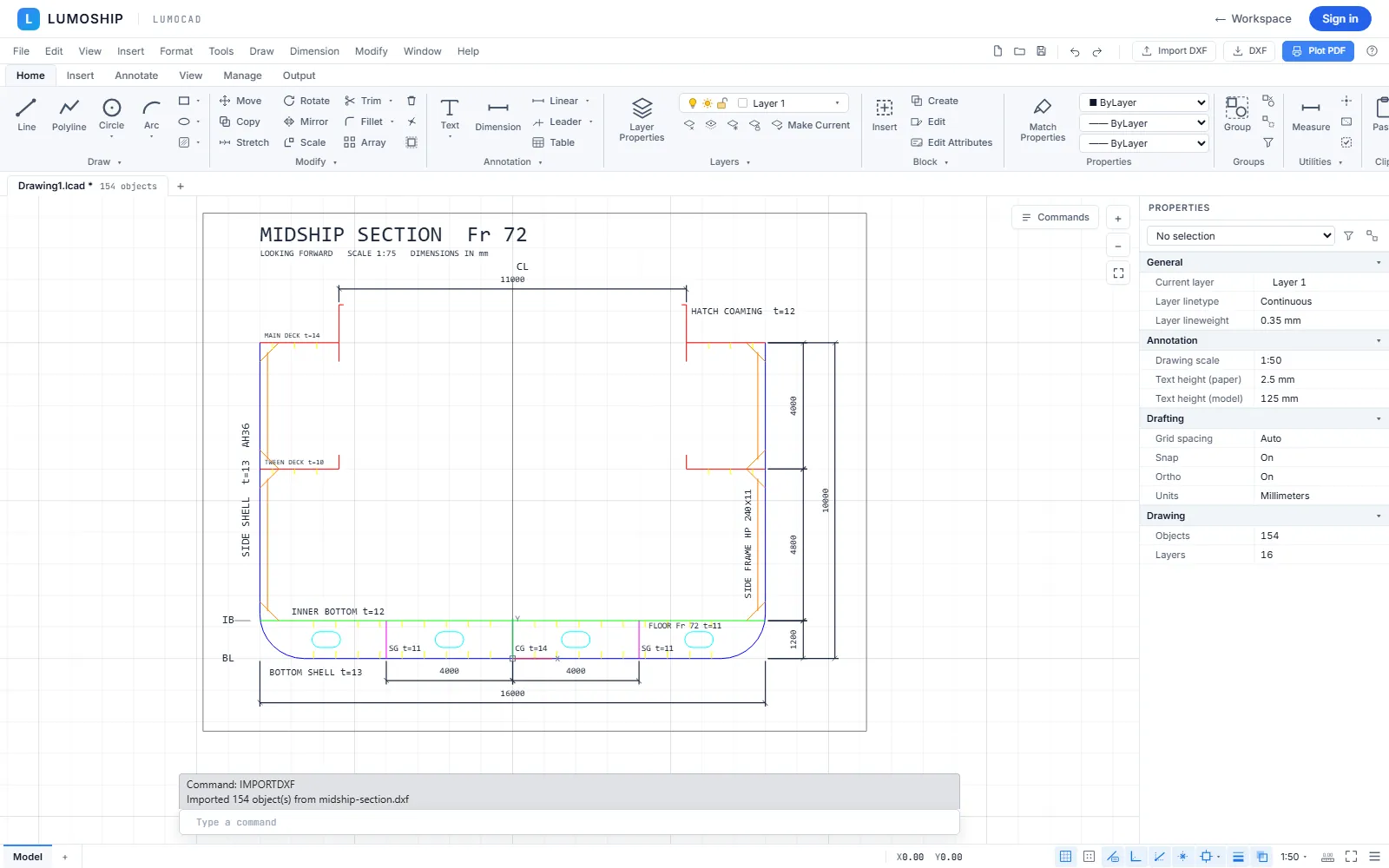

2D drafting in a browser tab that keeps AutoCAD habits: command aliases, typed coordinates, layers, associative dimensions and hatching with islands. DXF in and out, and PDF plots to scale.
DXF R2000PDF plot
In development. Free to use from launch until the end of 2027.
What it does
The feature set being built and verified for the first release.
- AutoCAD command aliases (acad.pgp) and typed coordinates

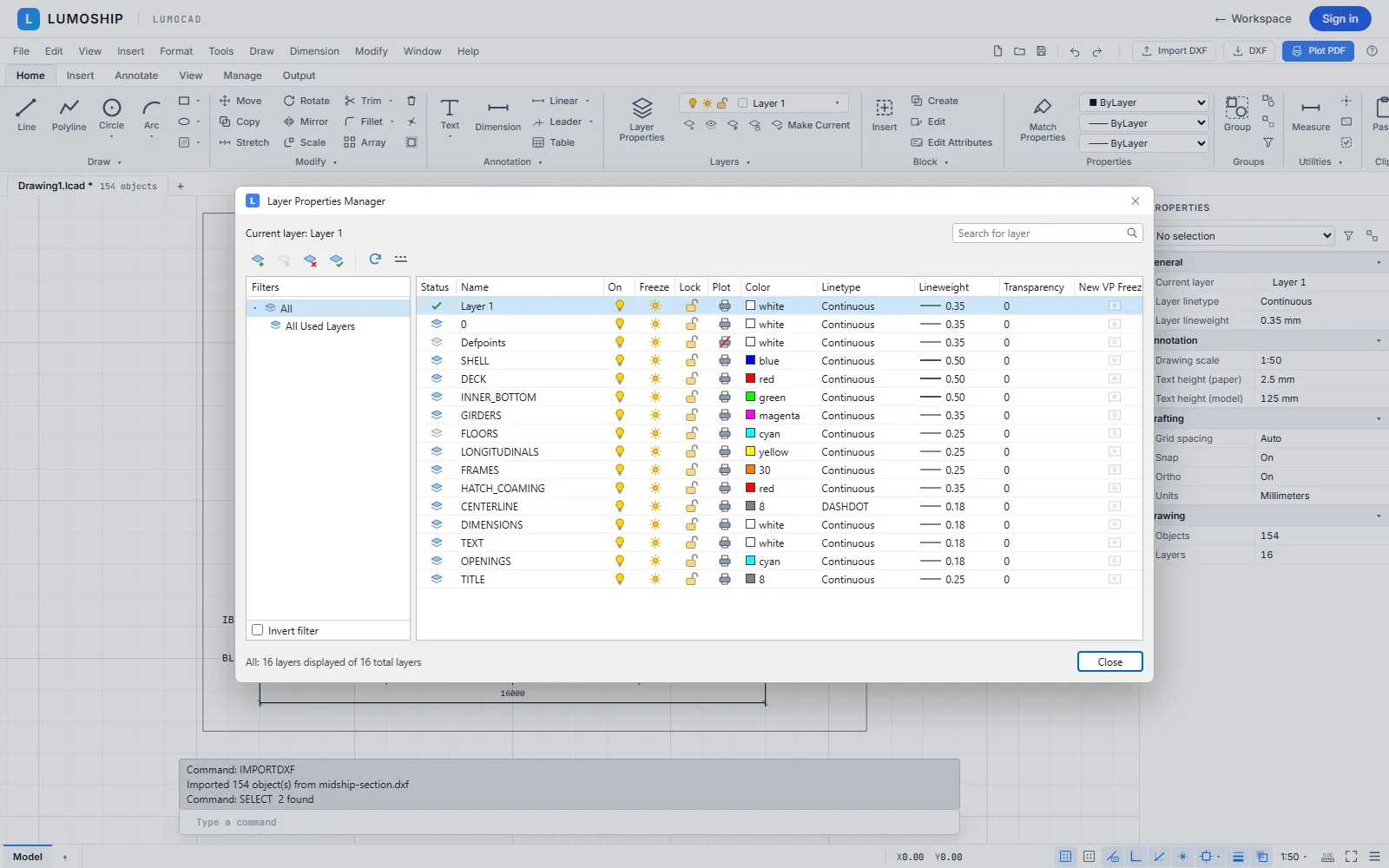

- Layers with on, freeze, lock and plot
- Associative dimensions, text and dimension styles
- Hatching with automatic boundary and islands
- DXF R2000 import and export
- PDF plot to scale
Release and pricing
The same for every Lumeship tool.
Now
In development. Each check is compared with the rule text and with reference software before release.
2027
The tools open one by one in the browser — no install, no licence server.
Until end of 2027
Free to use. Paid plans start in January 2028; see pricing.
